DJI Power Solar Panel Adapter Module (MPPT)
DJI Power Solar Panel Adapter Module (MPPT)
Regular price
$110.33 USD
Regular price
Sale price
$110.33 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- One MPPT module can connect to up to three solar panels.
- To use solar panels not officially recommended by DJI, and to prevent damage to the MPPT module and the power station, ensure the open-circuit voltage of the solar panel is less than 30 V. The power output of each solar panel should not exceed 200 W, with the total output power of solar panels connected to the entire MPPT module capped at 400 W.
- While using solar panels with the MPPT module, install the included metal heat dissipation bracket.
- When used with the DJI Power 500, the max output power of the solar panels connected to the entire adapter module should be exceed 300W.

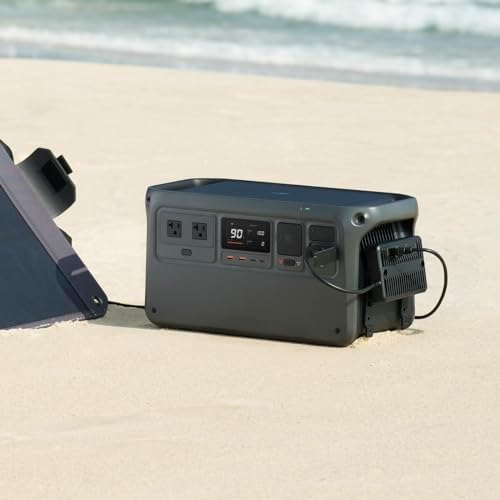

- Can connect to the DJI Power series and DJI-certified Zignes solar panels, facilitating eco-friendly solar recharging for the DJI Power series.

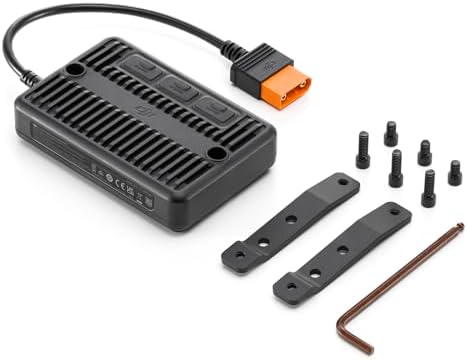

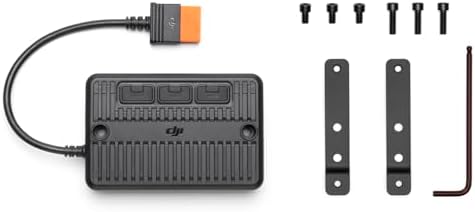

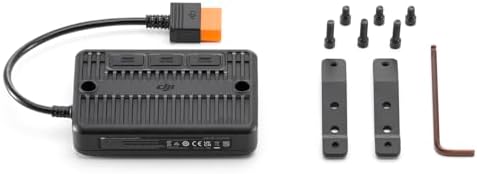

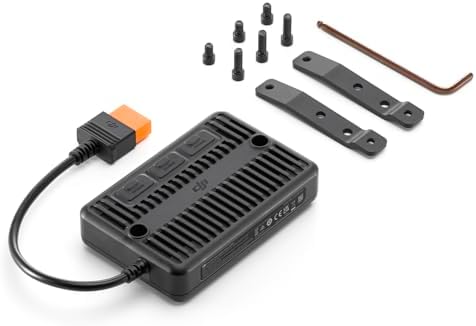

- DJI Power Solar Panel Adapter Module (MPPT) × 1 Metal Heat Dissipation Bracket × 2 Ball-End Hey Key × 1 10mm Screw × 3 20mm Screw × 3
- Total Output: Single Channel: Max 200 W Triple Channels: Max 400 W (with DJI Power 1000) Max 300 W (with DJI Power 500) Input Voltage: 12-30 V, DC Max Input Current: Single Channel: 10 A Triple Channels: 16 A Operating Temperature: -10° to 45° C (41° to 113° F)
- Compatible with DJI Power 2000 & DJI Power 1000 & DJI Power 500
